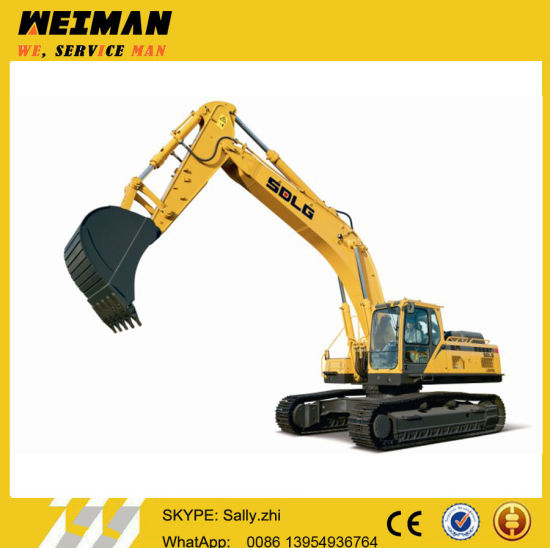

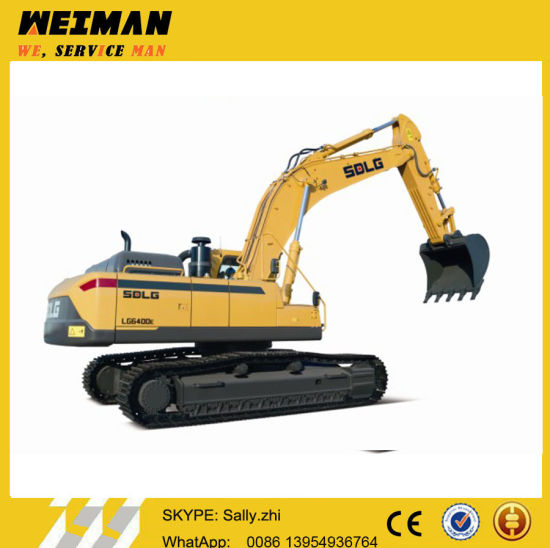

Brand New Digger LG6400 Made by Volvo China Factory

Quantity:




Inquire Add to Basket

Model NO.:
LG6400
Size:
Large-Scale
Certification:
ISO9001: 2000
Condition:
New
Engine:
SD130A
Operation:
Pilot Control
Drive:
Hydraulic
Cab:
Standard Cab with A/C
Rock Bucket:
2.0m3
Boom:
Short
Trademark:
sdlg
Transport Package:
Roro Vessel
Specification:
40050kgs
Origin:
China
HS Code:
84295212

Product Description

Brand new digger LG6400 made by volvo china factory

1. Charactors of SDLG digger LG6400E:

LG6400E digger, an upgraded product dedicatedly developed by SDLG on the basis of advanced technologies and manufacturing techniques introduced from Europe and applicable for various harsh working conditions, is the applicable for various harsh working conditions, is the perfect expression of premium configuration, global sourcing and delicate manufacture, full guaranteeing its high reliability and rate of return.

2. Technical specifications of sdlg digger LG6400E:

Overall dimension
Over width of upper assembly	2990mm
Over width	3340mm
Over height of cab	3190mm
Tail swing radius	3500mm
Overall herght of engine hood	2700mm
Gound clearance of counterweight	1210mm
Wheel base	4240mm
Crawler length	5180mm
Track gauge	2740mm
Track pad width	600mm
Min.ground clearance	500mm
Overall hength	11020mm
Overall height of boom	3580mm
Overall parameters
Bucket capacity	2.0m³
Overall weight	40050kg
Max.excavation force	236kN
Swing speed	0~9.7r/min
Traveling speed(low/high)	3.3/4.5km/h
Average ground pressure	69.4kPa
Max.digging radius	10610mm
Max.digging depth	6850mm
Max.digging height	10170mm
Max.dumping height	7090mm
Min.front swing radius	4380mm
Engine
Model	SD130A
Type	Four-stroke,supercharged,inter-cooled
Rated Power/speed	198kW/1700r/min
Displacement	12.8L
Cylinder bore/stroke	131/158mm
Emission standard	China Phase
Rated fuel consumption	≤215g/kW.h
Max.torque	1475N.m
Travelling/Swing system
Qty.of carrier rollers(single side)	2
Qty.of track rollers(single side)	9
Traveling brake type	Wet disc
Swing mode	Hydraulic drive internal tooth single-row ball-bearing
Swing brake type	Wet disc
Hydraulic system
Hydraulic control type	Pilot proportional control valve
Hydraulic type	Double-pump constant power and negative flow control system
Max.flow	2 ×280 +25.5L/min
Main pump model	K3V180
Operating pressure	320/350KGF/cm²
Arm cylinder-cylinder bore ×diameter of piston rod ×stroke	1-175×115×1700mm
Boom cylinder-cylinder bore ×diameter of piston rod ×stroke	2-160×105×1530mm
Bucket cylinder-cylinder bore ×diameter of piston rod ×stroke	1-145×100×1285mm
Fill capacity
Fuel	620L
Engine oil	45L
Hydraulic oil	515L
Travelling reducer	2×6.8L
Swing reducer	6L
