Brand new digger backhoe B877 for sale
1.The Charactors of SDLG digger backhoe B877
B877 backhoe is a small multi-function engineering machine newly designed with high cost performance and is widely applied in various building construction engineering, such as road construction and caring.cable laying,electricity and airport engineering, municipal construction and quarrying work, in city and countryside.
2. Descriptions of SDLG digger backhoe B877
Name | SDLG digger backhoe B877 |
Total Weight | 8400kgs |
Dimension | 5899*2350*3650mm |
Rated load | 1800kgs |
Max. dumpling height | 2176mm |
3.The Technical specifications of SDLG digger backhoe B877
Item | Specifications | |
Overall Dimension | ||
LxWxH | 5865x2270x3599mm | |
Overall width(D) | 2240mm | |
Max.dumping height(E) | 2176mm | |
Dumping distance(F) | 819mm | |
Min.ground clearance(G) | 346mm | |
Max.digging depth(H) | Standard boom:4329mm | |
Telescopic boom:5352mm | ||
Max. digging radius(I) | Standard boom:5343mm | |
Telescopic boom:6305mm | ||
Wheel tread(front/rear) J/J' | 1928/1790mm | |
Wheelbase(K) | 2170mm | |
Min.turning radius(outside of front wheel)L | 4178mm | |
Horizontal crossing radius(outside of bucket)M | 5426mm | |
Overall Parameter | ||
Overall working weight | 8400-8700kg | |
Loading bucket capacity | 1.0m3 | |
Rated load | 1800kgs | |
Max.tractive force | ≥82KN | |
Digging bucket capacity | 0.18M3 | |
Max.digging force | ≥50KN | |
Max.breakout force | ≥60KN | |
Max.grade ability | 22º | |
Engine | ||
Model | WP4G95E221 | |
Type | inline,water-cooled,direct injection | |
Rated power/speed | 70kw/2200r/min | |
Engine displacement | 4.5L | |
Cylinder bore/stroke | 105/130mm | |
Rated fuel consumption | ≤230g/kw.h | |
Max.torque | 380NM | |
Emission standard | china phase II | |
Transmission System | ||
Torque converter | Single-stage single-phase centripetal turbine | |
Transmission type | Synchronized shift | |
Gears | Four Forward ,Four reverse | |
Speed at forward/reverse I gear | 0-6km/h | |
Speed at forward/reverse II gear | 0-10km/h | |
Speed at forward/reverse III gear | 0-20km/h | |
Speed at forward/reverse IV gear | 0-40km/h | |
Brake System | ||
Service brake type | Vacuum booster wet brake | |
Parking brake type | Manual disc brake | |
Steering system | ||
Type | Load-sensing full hydraulic articulated steering | |
System pressure | 15MPA | |
Hydraulic system of loading implement | ||
System pressure | 22MPA | |
Total time | ≤8s | |
Hydraulic system of Digging implement | ||
System pressure | 22MPA | |
Fuel capacity | ||
Fuel | 160L | |
Hydraulic oil | 190L | |
Engine | 10L | |
Transmission | 20L | |
Drive Axle | 7.5+2x0.8/15L | |
Brake System | 2L |

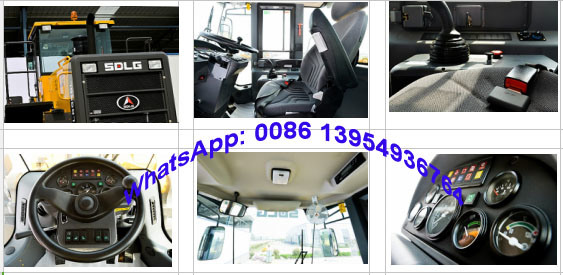

3. The inside of SDLG digger backhoe B877 :

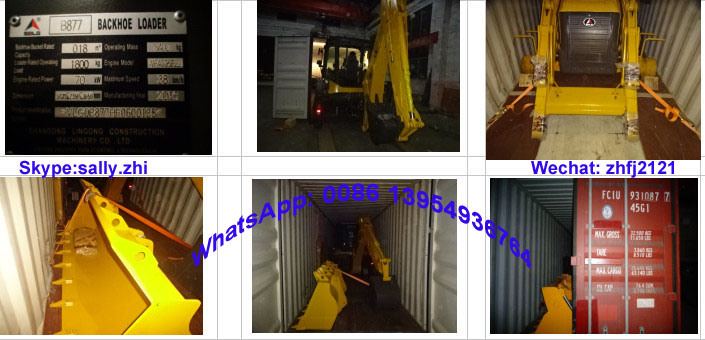

4. How to pack the SDLG digger backhoe B877 :
P.S. We are The 1st Volvo-SDLG special propose loader exporter in China.
Shandong Weiman Machinery Co., Ltd.
Tel: 0086 539-8199000
Mob : 0086 13954936764
Fax: 0086 539-8087992
Contact person: sally zhi
Address: A1402 Kaiyuan shangcheng Linyi City Shandong .China
