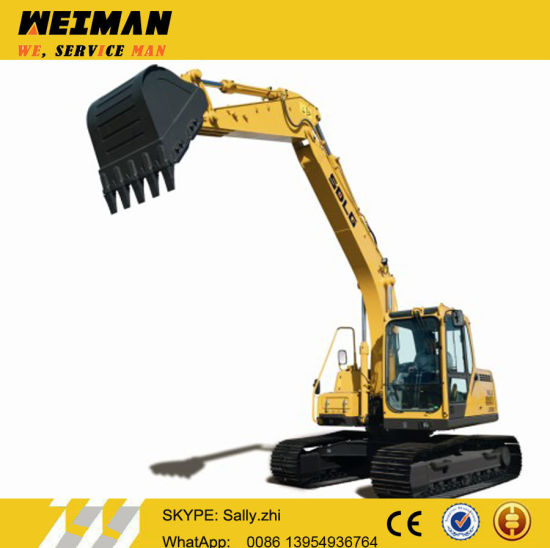

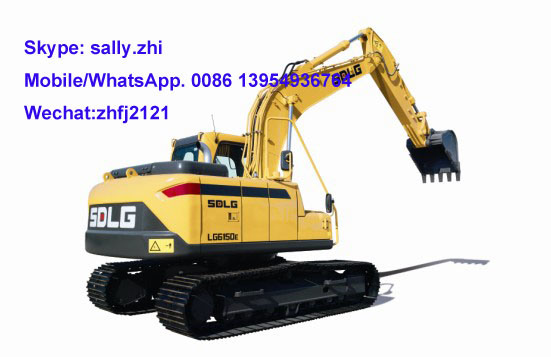

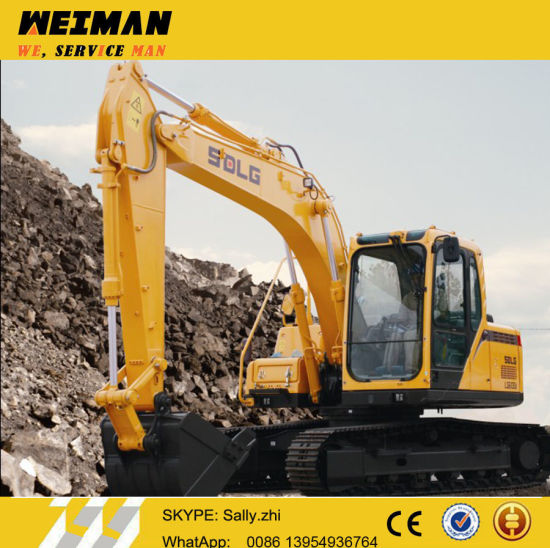

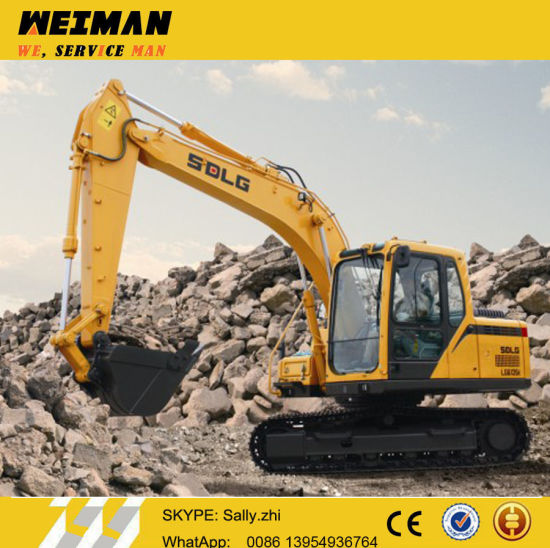

LG6150E
Small-Scale
ISO9001: 2000
New
Deutz Engine
Pilot Control
Hydraulic
Standard Cab with A/C
0.52m3
sdlg
Roro Vessel
13800kgs
China
84295212
| Overall dimension | |
| Over width of upper assembly | 2450mm |
| Over width | 2590mm |
| Over height of cab | 2700mm |
| Tail swing radius | 2200mm |
| Overall height of engine hood | 2080mm |
| Ground clearance of counterweight | 900mm |
| Wheelbase | 3000mm |
| Track Length | 3740mm |
| Track gauge | 1990mm |
| Track pad width | 600mm |
| Min.ground clearance | 430mm |
| Over length | 7700mm |
| Overall height of boom | 2830mm |
| Overall parameters | |
| Bucket capacity | 0.52m³ |
| Overall Operating weight | 13800kg |
| Max.excavation force | 98.1kN |
| Swing speed | 0-11r/min |
| Traveling speed(low/high) | 3.2/5.5km/h |
| Average ground pressure | 34.6kPa |
| Max.digging radius | 8330mm |
| Max.digging depth | 5530mm |
| Max.digging height | 8420mm |
| Max.dumping height | 8980mm |
| Min.front swing radius | 2630mm |
| Engine | |
| Model | BF4M2012980Nm |
| Type | Four-stroke,turbocharged,inter-cooled |
| Rated Power/speed | 66kW/2100r/min |
| Displacement | 4.04L |
| Cylinder bore/stroke | 101× 126mm |
| Emission standard | China |
| Rated fuel consumption | 223g/kW.h |
| Max.torque | 390N.m |
| Traveling/Swing system | |
| Qty.of carrier rollers(single side) | 1 |
| Qty.of track rollers(single side) | 7 |
| Swing mode | Wet disc |
| Swing brake type | Hydraulic drive internal tooth single-row ball-bearing |
| Hydraulic system | |
| Type | Double pump,constant-power minus flow control system |
| Control type | Pilot proportional control valve |
| Max.flow | 2 ×118 +21L/min |
| Main pump model | K3V63DT |
| Operating pressure | 330/350KGF/cm² |
| Main valve model | UX22 |
| Arm cylinder-cylinder bore ×diameter of piston rod ×stroke | 1-120×80×1045mm |
| Boom cylinder-cylinder bore ×diameter of piston rod ×stroke | 2-105×70×980mm |
| Bucket cylinder-cylinder bore ×diameter of piston rod ×stroke | 1-100×70×865mm |
| Fill capacity | |
| Fuel | 260L |
| Engine oil | 13L |
| Max.flow | 205L |
| Traveling reducer | 2×3.5L |
| Swing reducer | 3.8L |
