Brand New Construction Equipment L956f for Sale

Quantity:
  • L956F
  • Medium-sized Loader
  • Weichai Engine
  • Sdlg Gearbox
  • Sdlg Axle
  • Pilot Control
  • Standard
  • 3.0m3
  • sdlg
  • 1X40hq
  • 8230*3024*3380mm
  • China
  • 842951

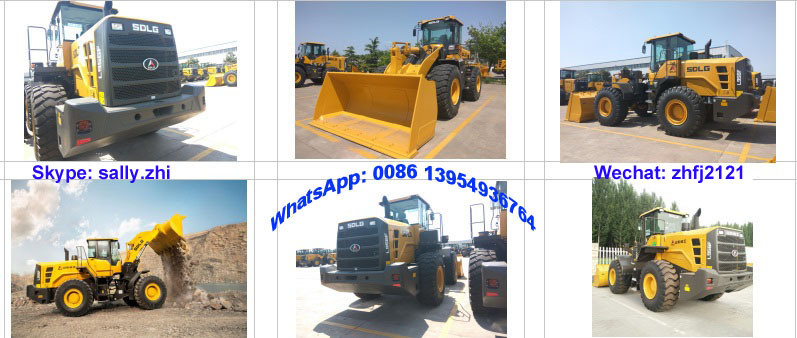

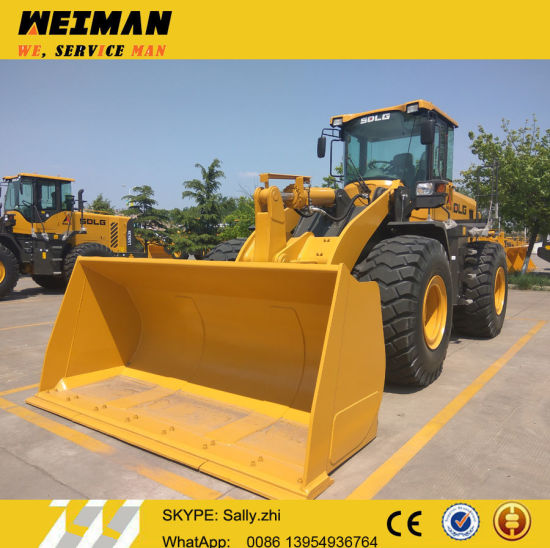

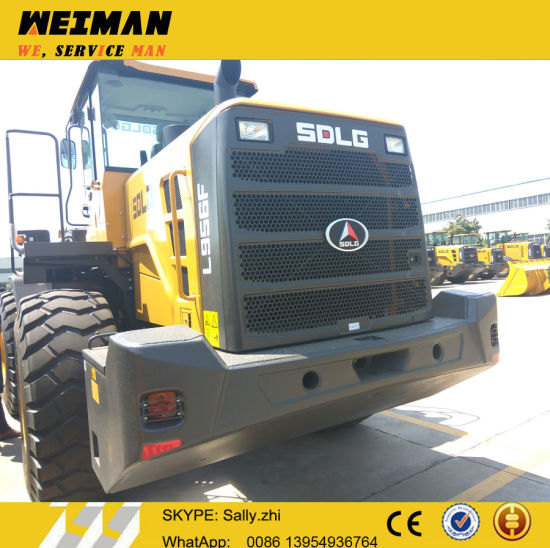

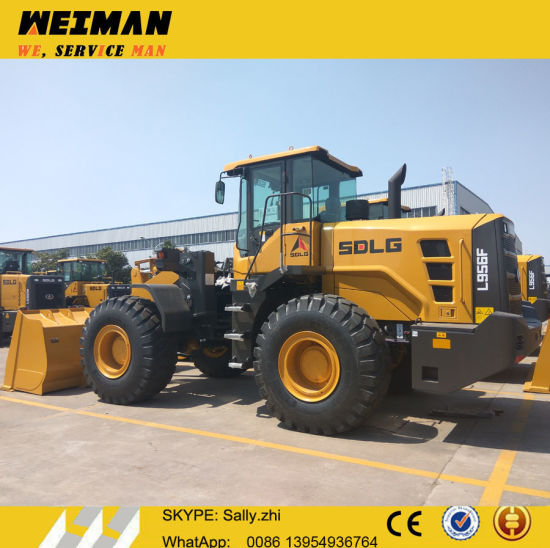

brand new construction equipment L956F for sale

Brand New Construction Equipment L956f for Sale


Brand New Construction Equipment L956f for Sale


Brand New Construction Equipment L956f for Sale

Charactors of SDLG construction equipment L956F:

L956F wheel loader is a long-wheelbase loader designed by SDLG with a next generation of appearance, and combines the energy-saving, reliability and comfort. It has the superior stability and large breakout force, and by virtue of the superior comprehensive performance, it is more suitable for mining and other heavy-duty operations.


Technical Specifications of SDLG construction equipment L956F:
overall dimension
L×W×H 8230×3024×3380mm
wheelbase 3300mm
Min.ground clearance 420mm
Max.dumping height 3110mm
Dumping distance 1100mm
Dumping angle -45°
wheel tread 2190mm
Steering angle 38°
Horizontal crossing radius 6850mm
Min.turning radius 5890mm
Overall parameter
Bucket capacity 3.0m3
Rated load 5000kg
Operating weight 17200kg
Max.tractive force 165kN
Max.breakout force ≥165kN
Tipping load ≥110kN
Engine
Model WD10G220E23
Type Inline,water-cooled,dry cylinder, direct injection
Rated power/speed 162kw/2000r/min
Engine displacement 9726ml
Cylinder bore/stroke 126/130mm
Max.torque 986Nm
Emission standard GB20891-2007 China Phase 2
Min.fuel-consume ratio ≤215g/kw.h
Transmission system
Torque converter Single-stage four-element double-turbine hydraulic torque converter
Transmission Type Planetary power shift
Gears Two forward one reverse
speed at forward gear 1 0~13km/h
speed at forward gear 2 0~38km/h
speed at reverse gear 3 0~17km/h
Hydraulic system of working device
Type Hydraulic pilot control
Total time 10.0s
Brake system
service brake type Air over hydraulic disc type
Parking brake type Electric pneumatic internal expansion shoe type
steering system
Type Load-sensing full hydraulic articulated steering
System pressure 16Mpa
Fill capacity
Fuel 300L
Hydrulic oil 240L
Engine 20L
Transmission 45L
Drive Axle 2x30L
Brake system 4L

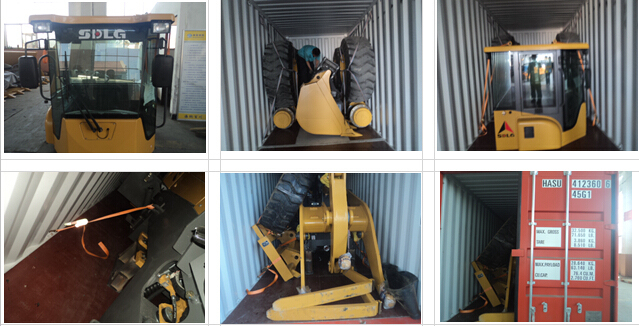

Packing photoes of sdlg construction equipment L956F:

Brand New Construction Equipment L956f for Sale

Brand New Construction Equipment L956f for Sale Brand New Construction Equipment L956f for Sale




P.S. We are The 1st Volvo-SDLG special propose loader exporter in China.

Shandong Weiman Machinery Co., Ltd.
Tel: 0086 539-8199000

Fax: 0086 539-8087992



Contact person: sally zhi
Address: A1402 Kaiyuan shangcheng Linyi City Shandong .China
