Brand New 5 Ton Wheel Loader LG953n

Quantity:
Inquire Add to Basket

sharethis sharing button

  • LG953N

  • Medium-sized Loader

  • Weichai Engine

  • Sdlg Gearbox

  • Sdlg Axle

  • Pilot Control

  • Standard

  • 2.8m3

  • sdlg

  • 1X40hq

  • 7794*3024*3423mm

  • China

  • 842951

Brand new 5 ton wheel loader LG953N made in volvo china factory

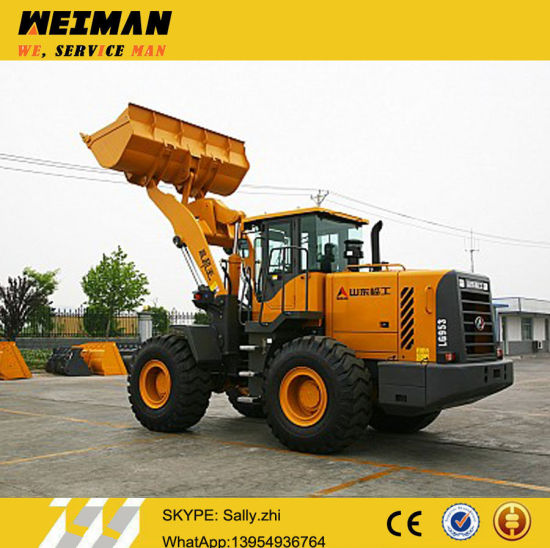

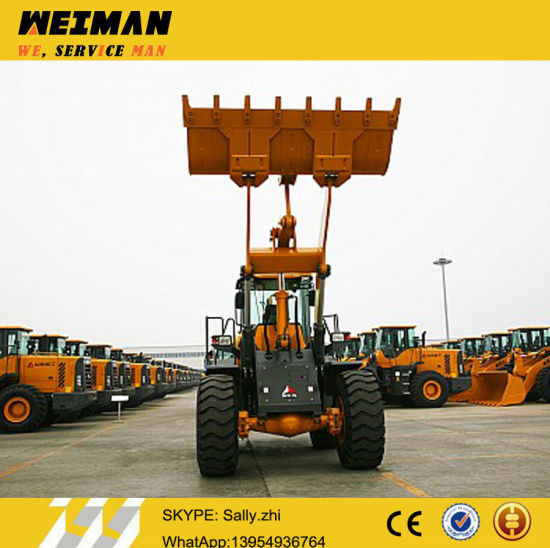

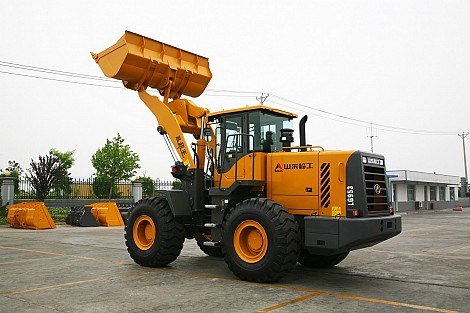

Brand New 5 Ton Wheel Loader LG953n

Brand New 5 Ton Wheel Loader LG953n


Brand New 5 Ton Wheel Loader LG953n

Charactors of SDLG 5 ton wheel loader LG953N:

LG953N tractor front loader Second generation energy-saving products inherits the low speed drive system of the first generation of energy-saving technology, make the most of the time working in low fuel consumption, reduce fuel consumption, improve energy efficiency.



Technical Specifications of SDLG 5 ton wheel loader LG953N:
overall dimension
L×W×H 7794×3024×3423mm
wheelbase 2920mm
Min.ground clearance 534mm
Max.dumping height 3050mm-3600mm
Lifting height 4074mm
Dumping distance 1080~1190mm
Max.gradeability 29°
Dumping angle 45°
Bucket rollback at ground level 45°
Overall width(outside of rear wheel) 2845mm
wheel tread 2250mm
Steering angle 35°
Horizontal crossing radius 6879mm
Min.turning radius 6201mm
Overall parameter
Bucket capacity 2.2~4.5m3
Rated load 5000Kg
Operating weight 16600~17000kg
Max.tractive force ≥160kN
Max.breakout force ≥190kN
Tipping load ≥100kN
Engine
Model WD10G220E23
Type Inline,water-cooled,dry cylinder liner,direct injection
Rated power/speed 162kw/2200/min
Cylinder bore/stroke 126/130mm
Max.torque 980Nm
Emission standard China phase
Min.fule-consume ratio ≤215g/kw.h
Transmission system
Torque converter single-stage four-element double-turbine hydraulic torque converter
Transmission type Planetary power shift
Gears Two fouward one reverse
speed at forward gear 0~13km/h
speed at forward gear 0~38km/h
speed at reverse gear 0~17km/h
Hydraulic system of working device
Type Mechanical/manual control
Total time ≥10.3s
Brake system
service brake type Air over hydraulic disc type
Parking brake type Manual, caliper disc brake
steering system
Type Load sensing full hydraulic articulated steering
System pressure 16Mpa
Fill capacity
Fuel 260L
Hydrulic oil 246L
Engine 20L
Transmission 45L
Drive Axle 2×26L
Brake system 4L

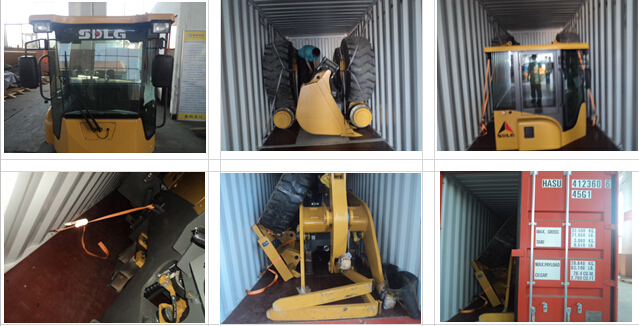

Packing photoes of sdlg 5 ton wheel loader LG953N:

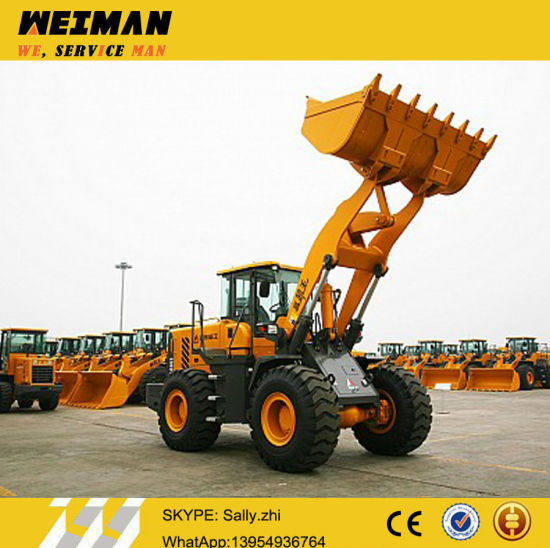

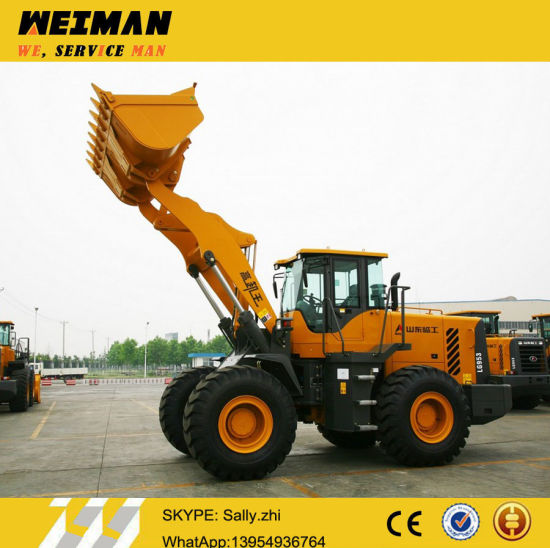

Brand New 5 Ton Wheel Loader LG953n

Brand New 5 Ton Wheel Loader LG953n
Brand New 5 Ton Wheel Loader LG953n

P.S. We are The 1st Volvo-SDLG special propose loader exporter in China.
