Best Brand 3 Ton Payloader Sdlg LG936L with Pilot Control and Air Conditioner

sharethis sharing button
  • LG936L

  • Max.Dumping Height(E): 2950~3278mm

  • Dumping Distance(G): 1020-1050mm

  • 7266 X2510 X3170mm

  • ≥105kn

  • Max.Climbing Angle(H): 30°

  • 92kw

  • SDLG

  • by 40hq

  • CE

  • Linyi Shandong

  • 842951

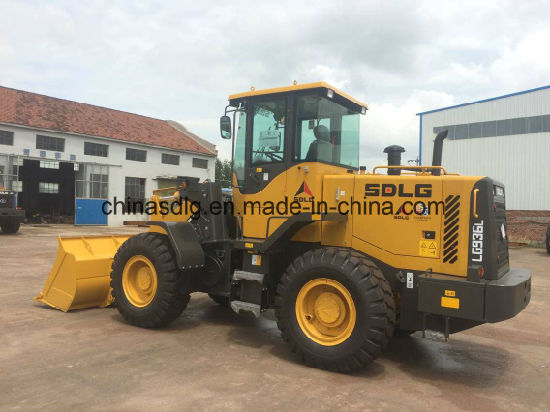

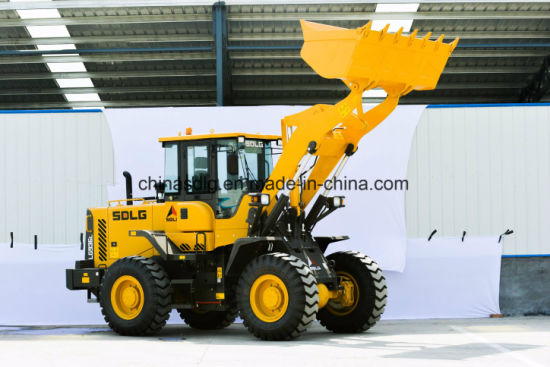

Best Brand 3 ton payLoader SDLG LG936L with pilot control and air conditioner

Best Brand 3 Ton Payloader Sdlg LG936L with Pilot Control and Air Conditioner

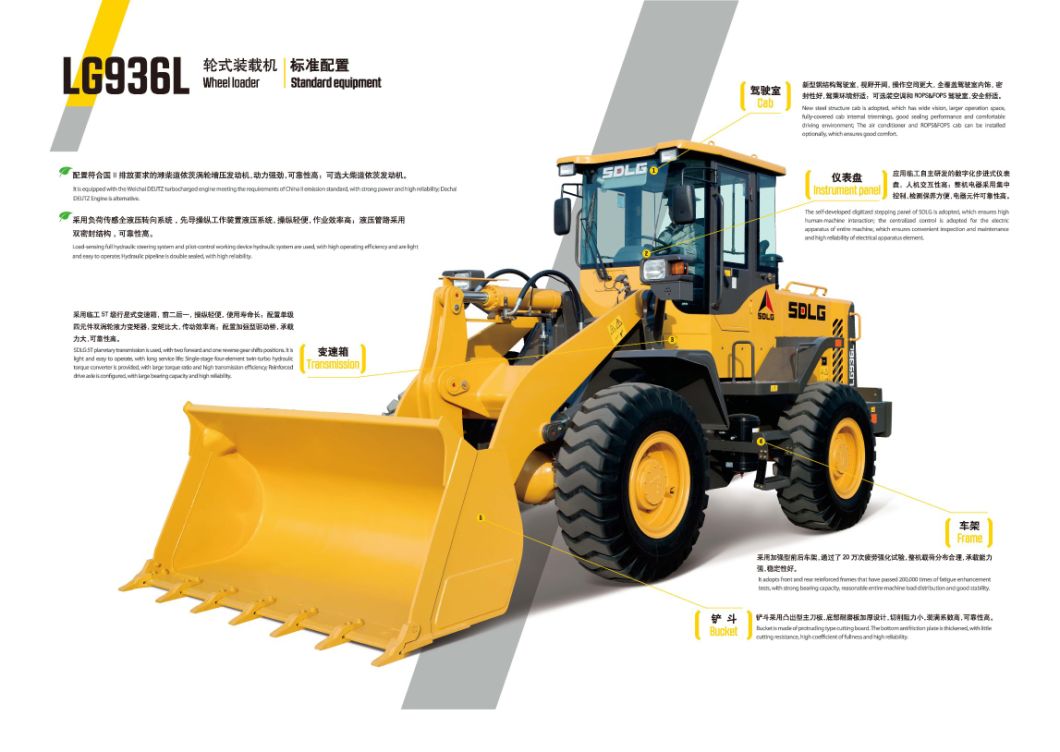

What's feature of LG936?

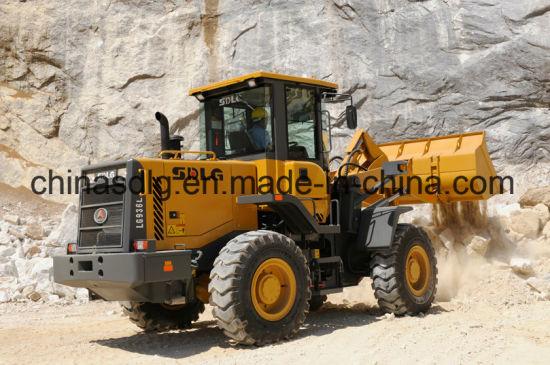

LG936L is a loader for loading and unloading loose materials, with high reliability and multiple purposes, and is widely used in farms, small mine plant, timber plant and towns construction and etc.
1. It is equipped with the Weichai DEUTZ turbocharged engine meeting the requirements of China II emission standard, with strong power and high reliability; Dachai DEUTZ Engine is alternative.
2. SDLG 5T planetary transmission case is used, with two front gear positions and one rear gear position. It is light and easy to operate, with long service life; Single-stage four-element twin-turbo hydraulic torque converter is provided, with large torque ratio and high transmission efficiency; Reinforced drive axle is configured, with large bearing capacity and high reliability.

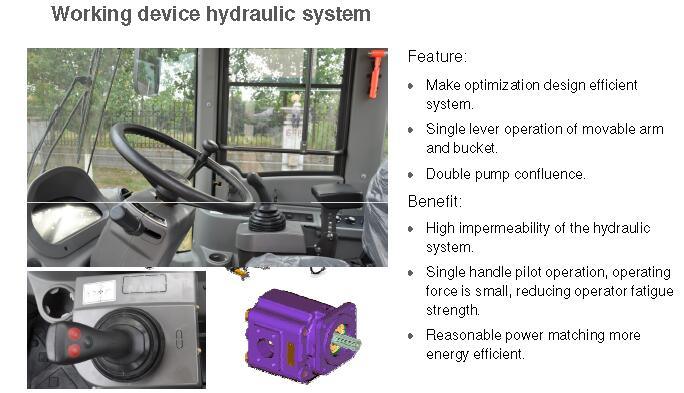

3. Load-sensing full hydraulic steering system and pilot-control working device hydraulic system are used, with high operating efficiency and are light and easy to operate; Hydraulic pipeline is double sealed, with high reliability.
4. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.

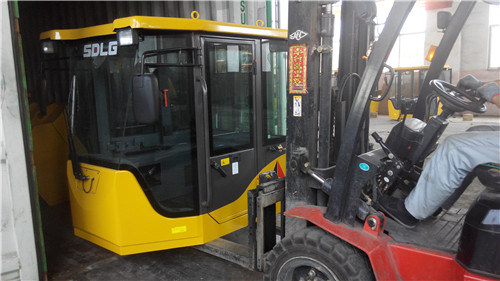

5. New steel structure cab is adopted, which has wide vision, larger operation space, fully-covered cab internal trimmings, good sealing performance and comfortable driving environment; The air conditioner and ROPS&FOPS cab can be installed optionally, which ensures good comfort.
6. The self-developed digitized stepping dashboard of SDLG is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.

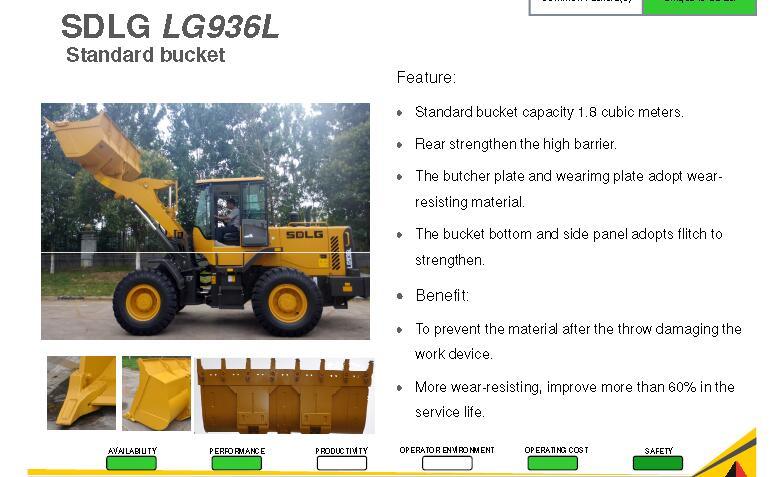

7. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient of fullness and high reliability.

What's Specification of LG936L?
Item Specifications Item Specifications Item Specifications
Overall dimension Operating weight 10700kg Speed at forward gear 2 0-38km/h
L×W×H 7100×2520×3170mm Max.tractive force ≥105kN Speed at reverse gear1 0-17km/h
Wheelbase 2850mm Max.breakout force ≥96kN Hydraulic system
Min.ground clearance 370mm Tipping load ≥66kN Type Hydraulic pilot control
Max.dumping height 2950-3278mm Engine Total time ≤9s
Lifting height 3789mm Model YC6J125Z-T20 Brake system
Dumping distance 1020-1050mm Type Inline,Water-cooled,wet cylinder,direct injection Service brake type Air over hydraulic disc type
Max.gradeability 30 Rated power Speed 92kw/2200r/min Packing brake type Electric air control disc brake
Dumping angle 45 Engine displacement 6494mm Steering system
Bucket rollback at ground level 45 Cylinder bore/stroke 105/125mm Type Load-sensing fully hydraulic articulated steering
Width of complete machine(outside of rear wheelM) 2310mm Max.torque 500Nm System pressure 12MPa
Wheel tread 1865mm Emission standard GB20891 II Fill capacity
Steering angle 38 Min.fuel-consume ratio ≤235g/kw.h Fuel 140L
Horizontal crossing radius 5912mm Transmission system Hydraulic oil 128L
Min.turing radius 5381mm Torque converter Single-stage four-element double-turbine hydraulic torque converter Engine 17L
Overall parameters Transmission type planetary power shift Transmission 45L
Bucket capacity 1.6-1.8m3 Gears Forward 2 reverse 1 Bridge 2×18L
Rated load 3000kg Speed at forward gear 1 0-13km/h Brake system 4L

Best Brand 3 Ton Payloader Sdlg LG936L with Pilot Control and Air Conditioner

Best Brand 3 Ton Payloader Sdlg LG936L with Pilot Control and Air Conditioner

Best Brand 3 Ton Payloader Sdlg LG936L with Pilot Control and Air Conditioner

Best Brand 3 Ton Payloader Sdlg LG936L with Pilot Control and Air Conditioner

What about your serice concept ?

I. Pre-purchase Service

Find right vendor and right equipment for our customer. Customer is always right, and smart as well. However, sometimes customers are not in a position to get the most proper suppliers. Besides, customers' personalized demands make sourcing accurate models time costing and painstaking. With 10 years experience, CE Supermarket is professional enough and high efficient in helping our customers acqurie their desired products.

II. In-purchase Service

Excellent purchase services from us make life easier. You are welcome to visit factories, inspect and test your machineries and spare parts, examine certificates required with our beautiful arrangement. Visiting China and learning Chinese culture are always fun nowadays for you.

III. After-purchae Service

You will feel more relaxed after the equipment reaches you. We can despatch our technicians and translators to the site to do installation & commissioning, training program is followed and qualified staff shall be granted with certificates. Apart from traditional routine services committed, a 7×24 on-line service will be opened for which a hundred-technian team will make prompt response towards customer enquiries and/or offer trouble-shooting diagnoses.

In one word, you will receive wonderful and high value products and services from our team.


What about your warranty ?

2000h or One year which come first .We have warranty certificate to show in details.

What about your after sale service ?

First ,we can recommend you one year to two years of wear spare parts .

Our engineer team at your service at any time. we can send people to your place for training and problems solve.

Second ,beside the wheel loader ,we also supply genuines spare part in any time.

Third, join our engineer team group, you can get the answer if you have any problems of wheel loader.

What about company ?

If you import wheel loaders from China, SDLG shall be your best choice.


Because SDLG is the most professional company on wheel loaders in China and it has been engaged in this line for more than 40 years.
Moreover, SDLG became Volvo's strategic alliance and partner in 2006, which greatly helps enhance its quality control and international vision in a wide range.
SDLG's wheel loaders cover a full range of 1-8 tons, about 7 category, more than 100 models. :LG916,LG936L, LG938L,LG956L, LG958L,LG968,LG978.. are among the best selling models in South America, Middle East, South East Asia, North Africa, Australia etc.
The highlights of SDLG wheel loaders can be summarized as Reliability and Durability which you may use it freely and comfortably all above others.

Shandong Weiman Machinery Co., Ltd., located in Linyi City, the same city where SDLG is headquartered ,designated by SDLG as one of its biggest exporter partners in China, gets ready to serve customers from all over the world.
You will receive not only best priced products but also excellent pre-purchase, in-purchase and after-purchase services

Thank you very much for your time and interested in our products.if you are trust and really intersted in China wheel loader ,VOLVO-SDLG brand wheel loader. please feel free to contact us at any time. our team are ready to service you .

Thank you again!!!!
