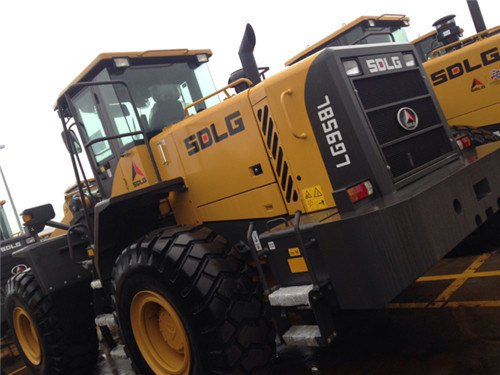

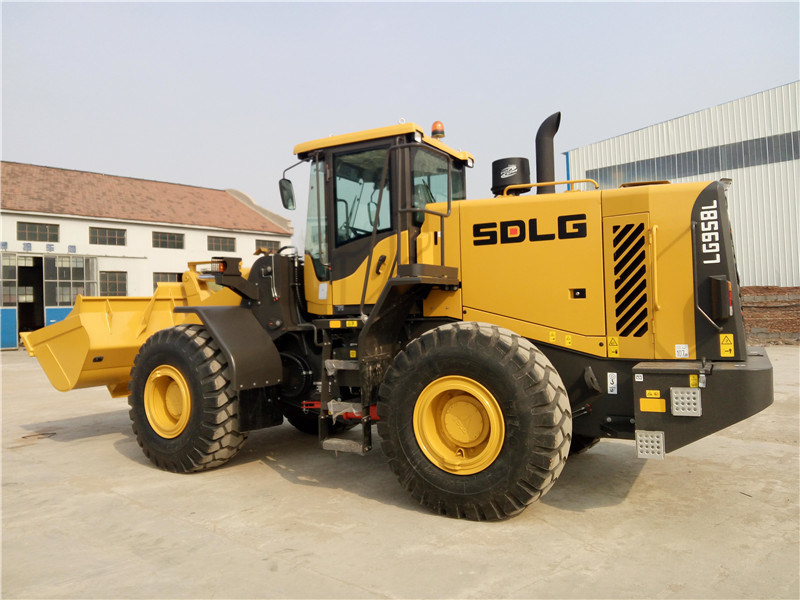

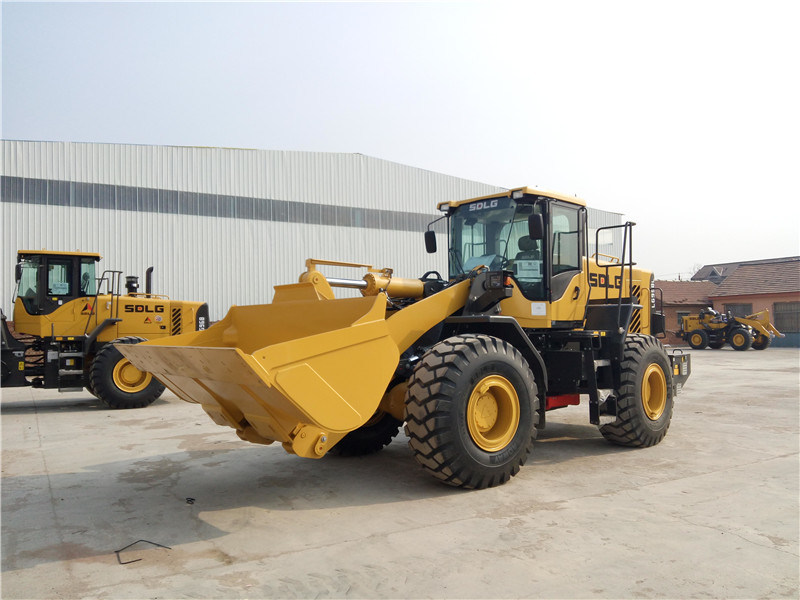

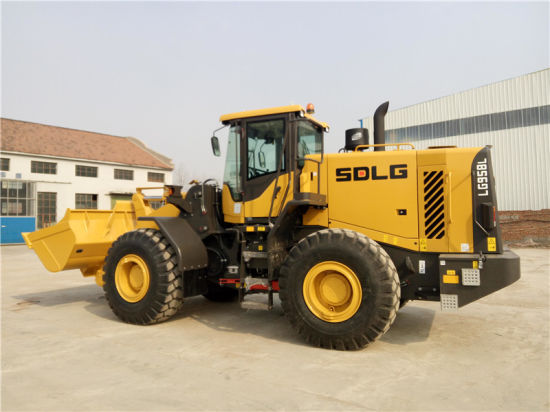

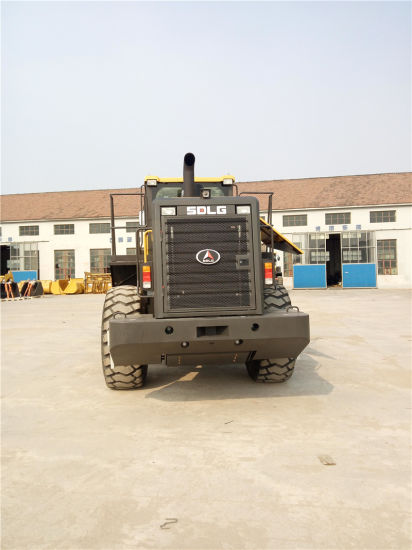

5T wheel loader LG958L with ZF gearbox for sale
What's feature of LG958L ?
LG958L is a mining and excavating typed loader for heavy-load operating condition, with long axle base, large breakout force, short operating cycle time and high operating efficiency and is widely used in building site, aggregate plant, mining, towns construction and etc.
1. The cooling system is designed with area-enlarged radiator, optimized inlet and outlet air channels to effectively decrease the temperature of water for engine and the temperature of oil for hydraulic system, which provides the entire machine with high cooling efficiency
2. ZF axis-fixed electric-liquid shift transmission case is used, with four front gear positions and three rear gear positions. It has KD shift functions, flexibility and high efficiency and is easy to operate; SDLG reinforced drive axle is configured, with large bearing capacity and high reliability.
3. Load-sensing full hydraulic steering system is used, with light and quick steering and reliable energy saving properties; Pilot-control working device hydraulic system is used, with high operating efficiency and is light and easy to operate; Hydraulic pipeline is double sealed, with high reliability.

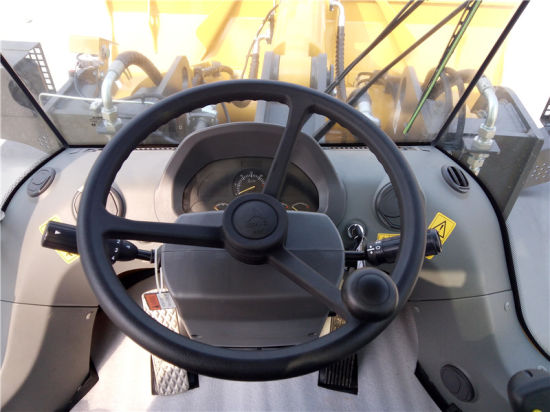

4. FOPS/ROPS cab is equipped, which has wide vision, large operation space, fully-covered cab internal trimmings, good sealing performance, up-to-ISO-standard air conditioning, interior and exterior cycling filtration system and safe and comfortable driving environment; Common cab is optional.
5. The self-developed digitized combination dashboard of SDLG is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.
6. It adopts finite element optimized front and rear frame that have passed 200,000 times of fatigue enhancement tests and has high strength and long service life; Long axle base and enlarged counter weight design ensures a stable traveling operation.
7. Working device is optimized, with large breakout force and high coefficient of fullness; Cutting board of bucket is a trapezoid anti-friction steel structure. The bottom anti-friction board is a thickened concave structure, with little inserting resistance and good anti-friction performance.
8. It adopts 20-ply rating tyre exclusively used for mine that is of larger bearing capacity and good abrasion performance.
What's Specification of LG958L ?
|Rated load ||5000kg |
|Overall weight ||16600 KG~17200 KG |
|Rated bucket capacity ||3 m³ |
|Maximum tractive force ||160 KN |
|Maximum breakout force ||180 KN |
|Maximum grade ability ||30° |
|Maximum dump height ||3120mm |
|Maximum dump reach ||1130 mm~1330 mm |
|Overall dimension(LxWxH) ||8079*3024*3382mm |
|2.Engine || |
|Model ||Weichai WD10G220E21 |
|Type ||Direct injection, Inline, water-cooled, four-stroke |
|No. of cylinder-bore/stroke ||6-126*130mm |
|Rated power ||162kw-2200r/min |
|Maximum torque ||860N.m |
|Minimum fuel-consume ratio ||≤215g/KW.H |
|3.Transmission system || |
|Torque Converter ||Single stage, three elements, single-turbine hydraulic torque converter |
|Transmission mode ||Fixed shaft electro- hydraulic Shift |
|Gear shift ||4 forward shift,3 reverse shift |
|Maximum speed ||37km/h |
|4.Hydraulic system || |
|Type ||Hydraulic pilot control |
|Total time ||≤9s |
|5. Brake system || |
|Service brake system ||Full hydraulic brake |
|Parking brake system ||Electric hydraulic control internal expanding shoe brake |
|6. Fill capacity || |
|Fuel ||300L |
|Hydraulic oil ||210L |
|Engine ||21.5L |
|Transmission ||35L |
|Drive axle ||2*30L |
What about your serice concept ?
I. Pre-purchase Service
Find right vendor and right equipment for our customer. Customer is always right, and smart as well. However, sometimes customers are not in a position to get the most proper suppliers. Besides, customers' personalized demands make sourcing accurate models time costing and painstaking. With 10 years experience, CE Supermarket is professional enough and high efficient in helping our customers acqurie their desired products.
II. In-purchase Service
Excellent purchase services from us make life easier. You are welcome to visit factories, inspect and test your machineries and spare parts, examine certificates required with our beautiful arrangement. Visiting China and learning Chinese culture are always fun nowadays for you.
III. After-purchae Service
You will feel more relaxed after the equipment reaches you. We can despatch our technicians and translators to the site to do installation & commissioning, training program is followed and qualified staff shall be granted with certificates. Apart from traditional routine services committed, a 7×24 on-line service will be opened for which a hundred-technian team will make prompt response towards customer enquiries and/or offer trouble-shooting diagnoses.
In one word, you will receive wonderful and high value products and services from our team.
WEIMAN PRODUCTS SHIP TO THE WORLD
What about your warranty ?
2000h or One year which come first .We have warranty certificate to show in details.
What about your after sale service ?
First ,we can recommend you one year to two years of wear spare parts .
Our engineer team at your service at any time. we can send people to your place for training and problems solve.
Second ,beside the wheel loader ,we also supply genuines spare part in any time.
Third, join our engineer team group, you can get the answer if you have any problems of wheel loader.
What about our company ?
If you import wheel loaders from China, SDLG shall be your best choice.
Because SDLG is the most professional company on wheel loaders in China and it has been engaged in this line for more than 40 years.
Moreover, SDLG became Volvo's strategic alliance and partner in 2006, which greatly helps enhance its quality control and international vision in a wide range.
SDLG's wheel loaders cover a full range of 1-8 tons, about 7 category, more than 100 models. :LG916,LG936L, LG938L,LG956L, LG958L,LG968,LG978.. are among the best selling models in South America, Middle East, South East Asia, North Africa, Australia etc.
The highlights of SDLG wheel loaders can be summarized as Reliability and Durability which you may use it freely and comfortably all above others.
Shandong Weiman Machinery Co., Ltd., located in Linyi City, the same city where SDLG is headquartered ,designated by SDLG as one of its biggest exporter partners in China, gets ready to serve customers from all over the world.
You will receive not only best priced products but also excellent pre-purchase, in-purchase and after-purchase services
Thank you very much for your time and interested in our products.if you are trust and really intersted in China wheel loader ,VOLVO-SDLG brand wheel loader. please feel free to contact us at any time. our team are ready to service you .
Thank you again!!!!
Shandong Weiman Machinery Co,.Ltd.- WEIMAN
