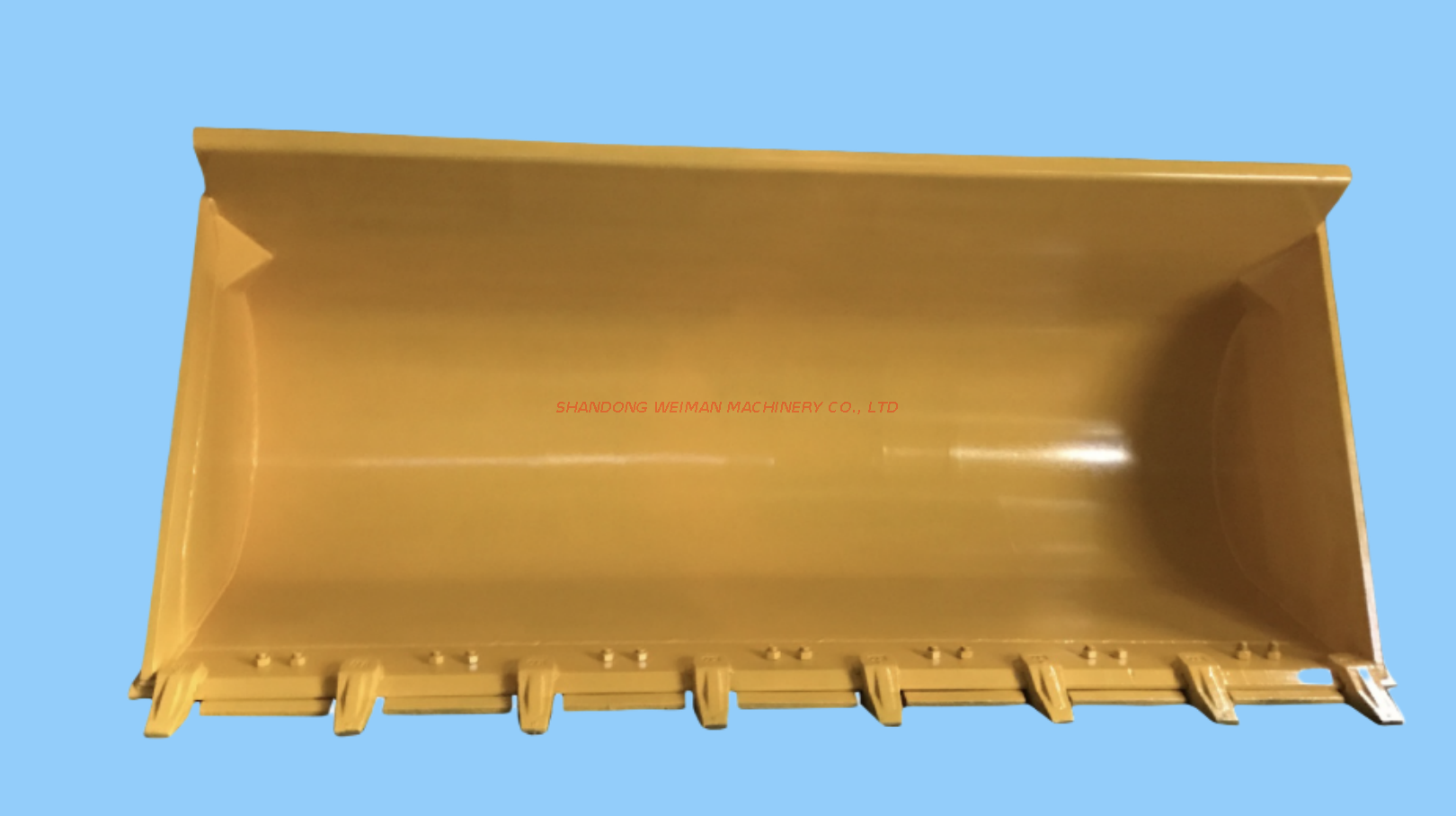

1690200030 SDLG Wheel Loader Bucket 1.8m³

Standard Wheel Loader Bucket 1.8m³ for SDLG Wheel Loader LG933L/L933H/L935H
P/N:
Material:
Net Weight:
Bucket size:
Availability:
Quantity:
sharethis sharing button
  • Standard Wheel Loader Bucket 1.8×2520(Assembly)

  • SDLG

  • 1690200030

  • 1.8m³

Part No: 29170036832

Product Description:Standard Bucket 1.8×2520(Assembly)

Material:Q345A6

Capacity:1.8

Width:2520

Unloading Height:2950

Unloading Distance:1050

Net Weight:754.74KG

Applicalbe Machines:SDLG LG933L/L933H/L935H

Working Condition:C、D、E


Notes:

Working condition series     Reference density(kg/m3)      Typical material description

E                                           ≤1150                                         Coal, slag and other lightweight materials

D                                          >1150~1400                            Lighter materials such as dry clay, anthracite raw coal and fine clay

C                                          >1400~1660                            Sand, soil and other general density materials

B                                          >1660~2100                            Heavy materials such as solid slag, gravel, wet sand and dense soil

A                                          >2100~2900                            Heavy materials such as raw stone, large stone block and iron ore
